Heat Exchanger in Hydrogen Industry: Structures and Manufacturing.

The world is gradually tending towards sustainable energy, a world where traditional fossil fuels are replaced with clean and sustainable energy sources. The hydrogen industry is at the forefront of this global energy transition.

However, this evolving cleaner energy source requires some efficient and reliable processes. Heat exchangers are pivotal to this transformative journey; modern devices that quietly enable the efficient production, purification, and storage of hydrogen.

The blooming hydrogen industry relies on heat exchangers for efficient hydrogen production, purification, and storage. Heat exchangers are more like the heartbeat of the hydrogen industry.

Heat exchangers regulate temperature precisions and ensure safe and seamless processes, from refining natural gas into hydrogen to managing heat in fuel cell systems.

Interestingly, like every technology, the design, material choices, and manufacturing of hydrogen systems determine their performance, longevity, and reliability. However, unlike traditional fluids used in heat transfer, hydrogen possesses certain unique properties that require careful consideration.

So, let’s explore the world of heat exchangers, exploring their unique structures, cutting-edge manufacturing methods, and selection of materials used in production, as well as the different vital roles they play in ensuring integrity and safety in the hydrogen industry.

What are Heat Exchangers in the Hydrogen Industry?

To put simply, heat exchangers are devices—precisely, metal boxes—designed to efficiently transfer heat from one fluid to another without them coming into direct contact. In the hydrogen industry, these devices play an essential role in regulating temperatures during diverse processes integral to hydrogen production, purification, compression, and storage.

This process is very seamless and straightforward. Heat exchangers work by carefully passing the fluids or gases. In this context, separate channels within proximity allow hydrogen to flow from the hotter fluid to the colder fluid through a solid wall separating them.

For clarity, imagine two metal pipes running side-by-side, with cold water flowing through one pipe and hot water flowing through the other. The heat from the hot water would pass through the metal wall and warm up the cold water without the two fluids ever coming in contact. That’s how heat exchangers work.

The good thing about heat exchangers is that they do more than just regulate temperatures in the hydrogen industry. Below are some other functions of heat exchangers:

  • Purification and Refinement: Heat exchangers help purify hydrogen by promoting processes like pressure swing adsorption (PSA) or membrane separation. Regulating temperatures ensures the effectiveness and efficiency of purification techniques, resulting in highly pure hydrogen suitable for various applications.
  • Compression and Storage: The temperature must be stable in hydrogen compression and storage systems. Heat exchangers ensure stable temperatures, adequately dissipate heat generated during compression, prevent overheating, and ultimately ensure the safety and integrity of hydrogen storage systems.
  • Fuel Cells and Power Generation: Heat exchangers are also integral components in hydrogen fuel cells, driving the efficient conversion of hydrogen into electricity. They maintain a suitable temperature range for fuel cell operation, enhancing performance and longevity.

Let’s talk about structures in the hydrogen industry.

Structures of Heat Exchangers in the Hydrogen Industry.

As said earlier, heat exchangers in the hydrogen industry play an important role in temperature management across different processes. As such, heat exchangers come in various structures designed to meet specific needs and applications.

Their structures and designs are crucial for efficiency, compactness, and adaptability while ensuring compatibility with hydrogen and other fluids. Below is a breakdown of some common structures used in the hydrogen industry:

  1. Shell and Tube Heat Exchangers:

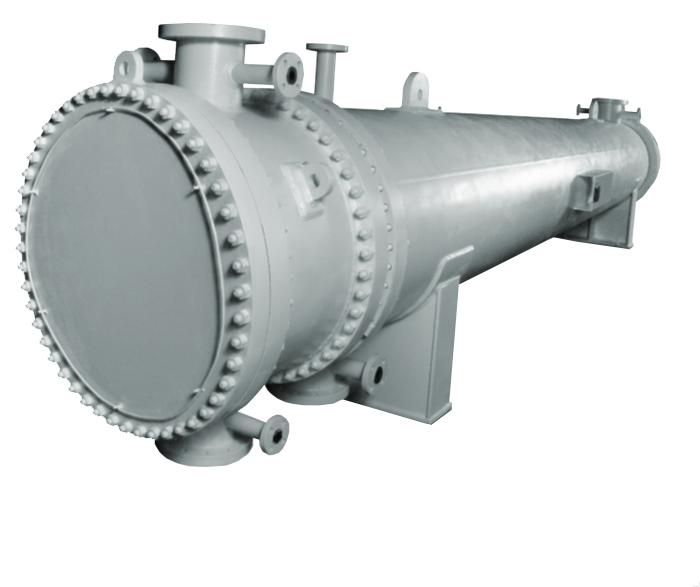

Shell & Tube Heat Exchangers

Shell and tube heat exchangers are among the most widely used types of heat exchangers due to their versatility and robustness.

Structure: Shell and tube heat exchangers consist of a cylindrical shell containing a bundle of tubes. One fluid, primarily hydrogen, flows through the tubes, while another fluid, often water or a heat transfer oil, circulates the tubes within the shell.


  • High heat transfer efficiency due to a large surface area.
  • Perfect for high-pressure and high-temperature applications.
  • Very easy to clean and maintain.
  1. Plate Heat Exchangers:

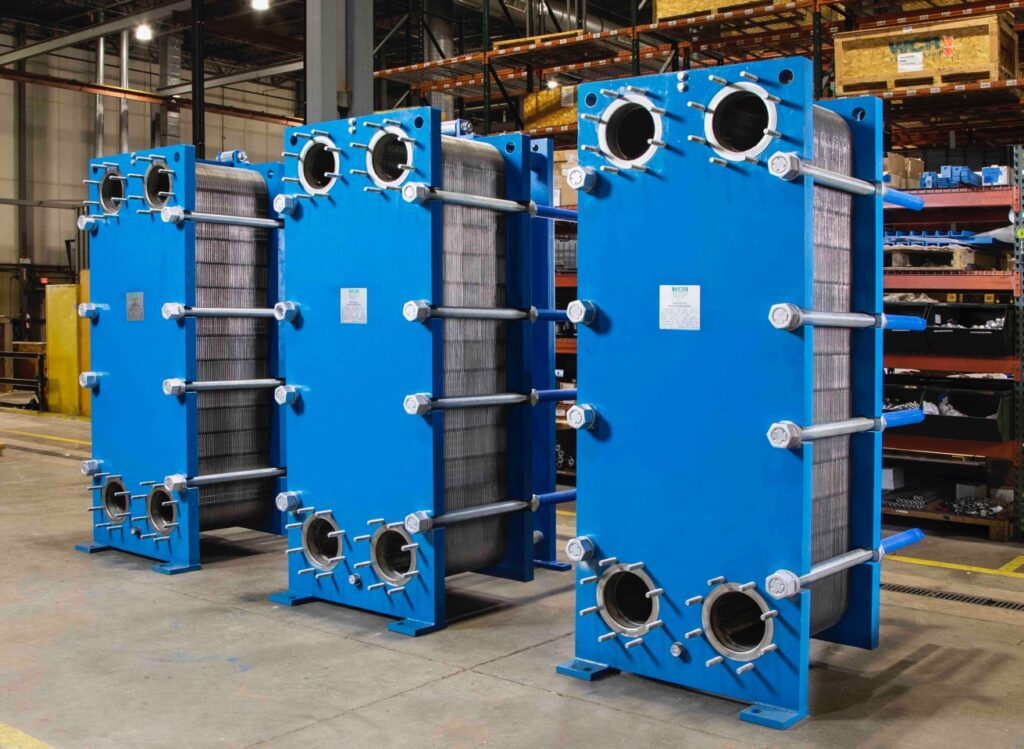

Titanium Plate Heat Exchanger

Plate heat exchangers, PHEs, are compact units of thin and corrugated metal plates stacked together. They offer premium thermal performance, making them ideal for limited-space applications.

These plates have formed channels within them, allowing fluids to flow in countercurrent or co-current configurations. The corrugations significantly increase the surface area for heat transfer between the fluids.

Structure: They consist of multiple corrugated plates stacked together, creating alternating channels for the two fluids.


  • Compact design requires less floor space.
  • High thermal efficiency due to turbulent flow.
  • Easy to expand or modify by adding or removing plates.
  1. Finned Tube Heat Exchangers:

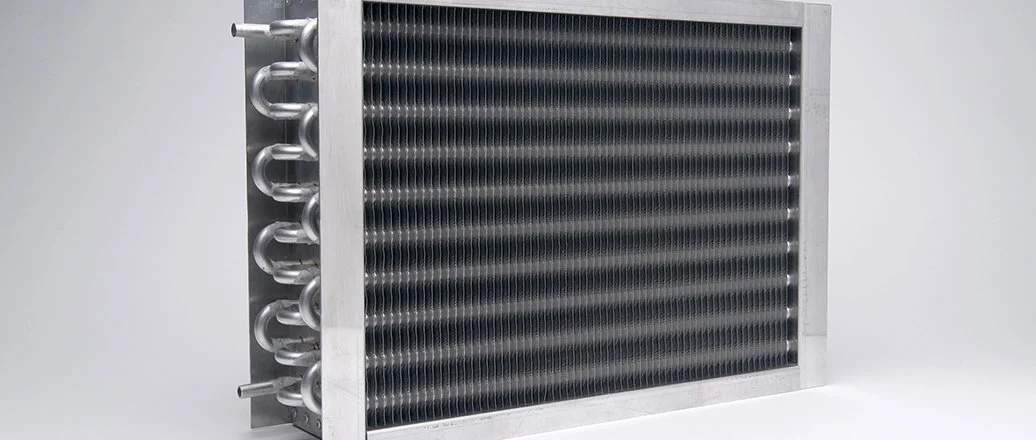

Fin and tube heat exchangers

Finned tube heat exchangers are designed to maximize the surface area for heat transfer, making them suitable for processes with significant temperature differentials.

Structure: These exchangers feature tubes with fins attached, increasing the surface area for heat exchange.


  • Enhanced heat transfer efficiency.
  • Suitable for both gas-to-gas and gas-to-liquid heat exchange.
  • Compact design with a high surface area-to-volume ratio.
  1. Compact Heat Exchangers:

Compact heat exchangers are specially designed for applications requiring high thermal efficiency and compactness.

Structure: They combine shell and tube, plate, and finned tube heat exchangers to achieve optimal performance in a compact footprint.


  • High thermal efficiency.
  • Compact design saves space and reduces installation costs.
  • Versatile and adaptable to various operating conditions.

That’s not an exhaustive list, as there are other heat exchangers out there, such as Brazed Plate Heat Exchangers (BPHEs). However, we have discussed some of the most commonly found heat exchangers.

Also, you should know there are no one-size-fits-all heat exchangers. The choice of heat exchanger structure for a specific application in the hydrogen industry depends on several factors, including:

  • Pressure and temperature requirements
  • Desired heat transfer efficiency
  • Space constraints:
  • Cost considerations:

Manufacturing Methods for Heat Exchanger Components

Hydrogen-compatible heat exchangers require precision and specific manufacturing techniques to ensure component integrity, durability, and safety.

Here’s a closer look at some critical methods employed:

Laser Cutting.

This precise method utilizes a high-powered laser beam focused through a computer-controlled system to cut intricate shapes from metal sheets.


  • High precision and accuracy.
  • Clean cuts with smooth edges, reducing the need for post-processing.
  • Versatility to cut a wide range of materials and thicknesses.

Metal Bending.

Metal bending involves forming sheets or tubes of metal into specific desired shapes, such as tubes, fins, or shells, using specialized equipment. Standard methods include press brakes and roll bending.


  • Ability to produce complex shapes and geometries.
  • High repeatability and consistency in bending operations.
  • Suitable for a wide range of metals and thicknesses.


This technique utilizes a punch and die to create precise holes in metal sheets for various purposes. The punch, a shaped tool, presses through the sheet, guided by the die which determines the final hole shape.


  • Speed and efficiency in creating holes and cutouts.
  • Accurate and reproducible, ensuring uniformity across components.
  • Versatility to create a variety of features and geometries based on design requirements.

These are just some of the essential manufacturing methods used to create impeccable and reliable components for heat exchangers in the hydrogen industry. As technology advances, we can be sure of improvements in precision manufacturing techniques, leading to even more efficient and cost-effective production of these components for a clean hydrogen future.

Materials for Heat Exchangers in the Hydrogen Industry

As said earlier, hydrogen possesses unique properties and as such, the selection of materials for heat exchangers in the hydrogen industry must be carefully done to ensure safe and efficient operation.

Hence, below is a breakdown of commonly used materials and their suitability for hydrogen applications:

Stainless Steel (Alloy 316)

Properties: A popular choice due to its:

  • Excellent Corrosion Resistance: This offers strong resistance to corrosion from hydrogen gas, making it a reliable choice for most hydrogen applications.
  • High Strength: Provides the necessary mechanical strength to withstand the pressures encountered in various hydrogen processes.
  • Good Weldability: Facilitates efficient joining of components during heat exchanger fabrication.

Applications: Widely used in PHEs, and BPHEs, for hydrogen production, compression, storage, and fuel cell systems.


Properties: Offers exceptional:

  • Strength-to-Weight Ratio: Provides high strength while remaining lightweight, a valuable attribute for applications where weight reduction is desired.
  • Superior Corrosion Resistance: Offers even better corrosion resistance to hydrogen compared to stainless steel, particularly at high temperatures.

Applications: Used in specific high-pressure and high-temperature applications in the hydrogen industry due to its superior properties. However, it’s more expensive than stainless steel.


Properties: Aluminum offers:

  • Good Thermal Conductivity: Conducts heat efficiently, a desirable trait for heat exchangers.
  • Low Weight: Lightweight and cost-effective material.

Applications: Certain aluminum alloys with specific compositions can be used in controlled environments within the hydrogen industry where minimal hydrogen exposure occurs.

Carbon Steel


  • Strength: Carbon steel offers high mechanical strength, allowing for the fabrication of robust heat exchanger components.
  • Affordability: Carbon steel is cost-effective compared to stainless steel or titanium, making it a popular choice for budget-conscious projects.
  • Weldability: Carbon steel is easily weldable, facilitating the assembly and modification of heat exchanger components.


Heat exchangers play a vital role in the hydrogen industry by ensuring optimal temperature control across various processes. Choosing the right materials for these workhorses is crucial for their performance, safety, and lifespan. As the hydrogen industry continues to grow, advancements in material science are expected to bring forth even more robust and efficient components for the development of next-generation heat exchangers, paving the way for a clean and sustainable hydrogen future.
